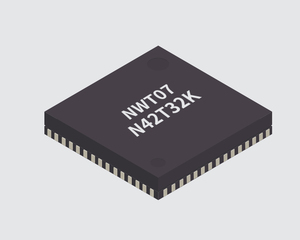

MCUNWT07N42T32K

High Performance Capacitive Touch Sensor Controller

CPU & Memory	• Embedded 32bit ARM CPU Processor • Embedded 32KB Program ROM • Embedded 4KB SRAM for Data Processing
Peripherals	• Clock/Reset Controller • Watch-dog Timer • 4-Channel Timer/PWM • I2C/SPI Master for controlling other device • I2C/SPI Slave for Host Interface • DMA Controller • GPIO/Pin-Mux
Sensor AFE	-• Up to 26-Ch Capacitive Touch Controller • Configurable Channel Array • Assignable Touch PADs up to 4 • Single-Touch Sensing • Multi-Touch Sensing • Multi-Sampling ADC for Noise Efficient Architecture
Sensor DFE	• 4KB CDC Processing Memory • Noise Reduction Filter • Control Overall Sensor Operation
On-Chip LDO	• Input Power: 2.7V~3.6V • Output Power: 1.8V for Digital Core z
On-Chip 2 Oscillator	• Slow OSC(S-OSC), Normal OSC(N-OSC)
Power Consumption	• Idle 25Hz:2mW, Subject configuration • Active Power under 10.5mW @50Hz, single touch / under 16.5mW @80Hz, single touch • Sleep:7uW
Operation Voltage and Package	• 2.7V~3.6V Analog, 1.8V Digital Core, 1.65V~3.6V Digital IO Voltage • 4.5x4.5mm2 uTQFN: 26-Channel
